Products

Hydraulic solutions from a single, reliable partner

Hydoring offers the opportunity to source all key hydraulic solutions from a single, reliable partner, including cylinders, power units, components, and expert design services. This provides significant advantages: easier system integration, improved compatibility, and a more efficient delivery process.

Modern and flexible production: Our production enables a wide range of sizes, with piston diameters from 25 to 700 mm and stroke lengths of over 12 meters. Products are designed and manufactured in Finland using advanced manufacturing methods, precision machinery, and decades of experience. The production process is further supported by a high-quality surface treatment facility and paint shop, ensuring durability even in demanding operating conditions.

All our cylinders are carefully tested before delivery in accordance with ISO 10100 to ensure reliable performance in all operating conditions.

  • + 20 000
    Cylinder factory capacity
  • + 1 000
    Customized solutions annually
Hydraulic cylinder

Hydraulic cylinders

Reliability for demanding applications

Hydoring Oy has been manufacturing high-quality hydraulic cylinders for over 35 years. Our cylinders operate reliably in demanding industrial, marine, and mobile equipment applications year after year.

Our offering includes a comprehensive range of standard cylinder series as well as fully customer-specific custom cylinders, precisely designed to meet the technical requirements of each application.

Our cylinder range includes:

  • Standard cylinders, including ISO-compliant cylinders
  • Positioning cylinders with precise position sensing
  • Custom-designed special cylinders for specific requirements

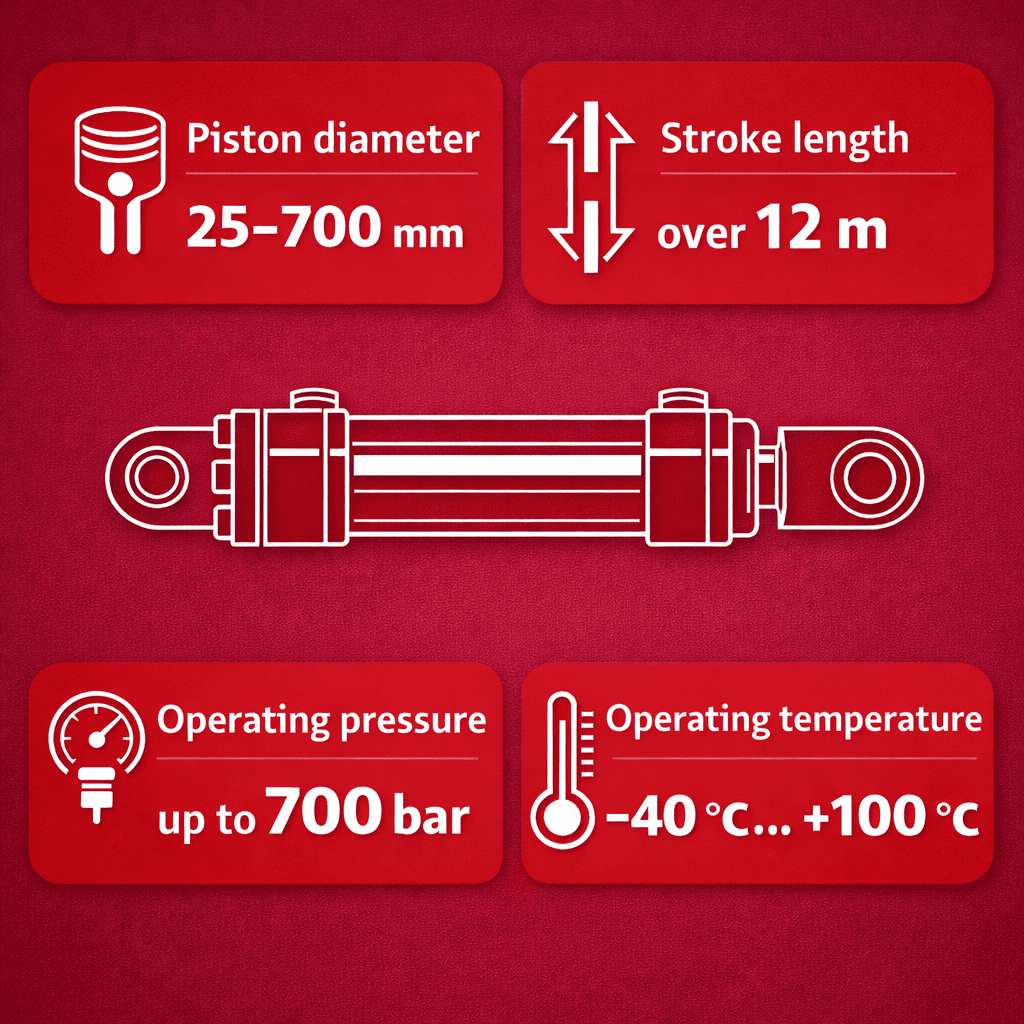

Our modern and flexible production enables a wide range of sizes, with piston diameters from 25 to 700 mm and stroke lengths of over 12 meters. Products are designed and manufactured in Finland using advanced manufacturing methods, precision machinery, and decades of experience.

All our cylinders are carefully tested before delivery, ensuring reliable performance in all operating conditions.

Hydoring’s cylinder range includes, among others, the following series:

HD1000 is a hydraulic cylinder series designed for lighter industrial and mobile equipment applications where cost-efficiency and operational reliability are prioritized.

Technical specifications:

  • Cylinder sizes: Piston diameter Ø40–80 mm
  • Nominal pressure: 16 MPa (160 bar)
  • Mounting type: spherical bearing mounts
  • No end cushioning option

HThe HD1000 series can be configured using Hydoring’s configurator!

HD6120 is a double-acting hydraulic cylinder series compliant with the ISO 6020/1 standard, designed for demanding applications in heavy industry.

Technical specifications:

  • Piston diameters: Ø25–200 mm
  • Nominal pressure: 16 MPa (160 bar)
  • End cushioning option available
  • Length and stroke tolerances: in accordance with ISO 8135

The HD6120 series can be configured using Hydoring’s configurator!

HD6022 is a double-acting cylinder series compliant with the ISO 6022 standard, designed for heavy-duty industrial applications.

Technical specifications:

  • Piston diameters: Ø50–200 mm
  • Nominal pressure: 25 MPa (250 bar)
  • End cushioning option available
  • Length and stroke tolerances: in accordance with ISO 8135

HThe HD6022 series can be configured using Hydoring’s configurator!

HD2250 is a high-quality double-acting hydraulic cylinder series designed for demanding industrial, shipbuilding, and mobile equipment applications. The series combines high performance, a wide range of sizes, and versatile mounting options.

Technical specifications:

  • Cylinder sizes: Ø25–250 mm
  • Ø25–125 mm cylinders: nominal pressure 21 MPa (210 bar)
  • Ø160–250 mm cylinders: nominal pressure 25 MPa (250 bar)
  • No end cushioning option

The HD2250 series can be configured using Hydoring’s configurator!

HD6000 is a double-acting servo cylinder series designed specifically for demanding industrial applications such as machinery manufacturing, automation, and heavy-duty motion control. The series is based on ISO 6020/1 dimensions, and its technical solutions ensure precise and leak-free operation even during extended operating cycles.

Technical specifications:

  • Piston diameters: Ø50–125 mm
  • Nominal pressure: 16 MPa (160 bar)
  • End cushioning option available
  • Length and stroke tolerances: in accordance with ISO 8135

The HD6000 series can be configured using Hydoring’s configurator!

HD2205 is a high-quality hydraulic cylinder based on the HD2250 series, equipped with an integrated load-holding valve. This makes it an excellent choice for applications requiring enhanced safety, control, and system stability.

Technical specifications:

  • Cylinder sizes: Ø63, Ø80, Ø100, and Ø125 mm
  • Nominal pressure: 21 MPa (210 bar)
  • Valve options: cylinders are primarily supplied with Sun Hydraulics valves
  • The design is based on the HD2250 series

The HD2205 series can be configured using Hydoring’s configurator!

The HD9000 series is Hydoring’s largest standard double-acting hydraulic cylinder series, designed specifically for heavy industrial applications and high force requirements. The series covers piston sizes Ø320–Ø500 mm and offers two standard rod options in each size category.

Technical specifications:

  • Piston diameters: Ø320–Ø500 mm
  • Nominal pressure: 25 MPa (250 bar)
  • Stroke lengths: up to over 12 meters

The HD9000 series can be configured using Hydoring’s configurator!

The HDS series includes Hydoring’s custom-engineered special cylinders, designed and manufactured precisely according to the technical and functional requirements of each application.

The HDS series represents Hydoring’s custom-designed and manufactured special cylinders, engineered to meet the specific requirements of demanding applications.
We have delivered these solutions extensively across various industries – from mining and marine industries to mobile equipment – when standard solutions are not sufficient.

• Single-acting cylinders
• Double-acting cylinders
• Telescopic cylinders
• Cylinders with integrated valve solutions
• Positioning cylinders with sensors

Technical specifications

  • Piston diameters: Ø25–Ø700 mm
  • Nominal pressure: up to 70 MPa (up to 700 bar)
  • Stroke lengths: up to over 12 meters
  • Versatile configurations

HDS cylinders are the right choice when individually tailored, high-performance, and safe solutions are required without compromise.

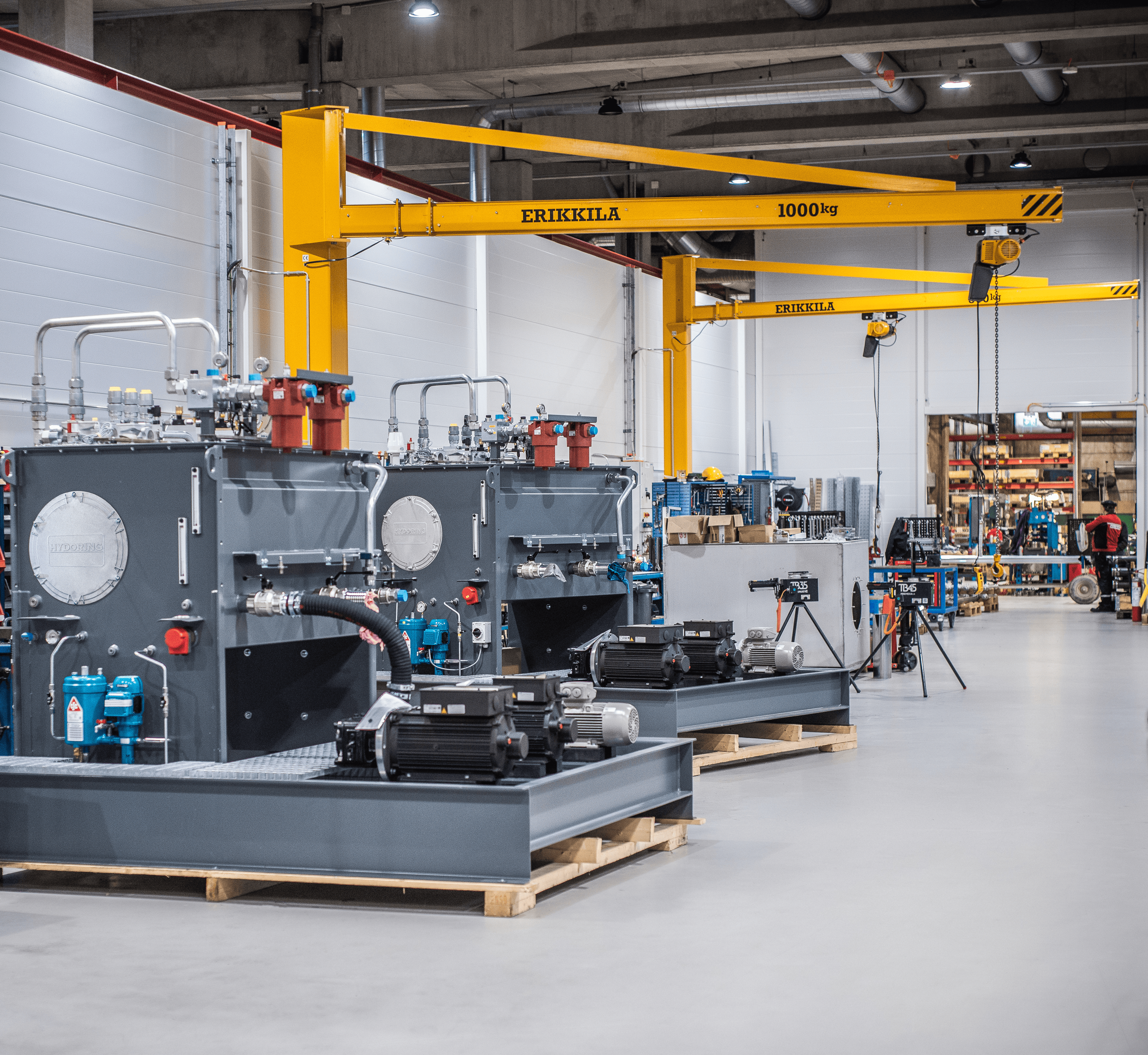

 Hydraulic power units and systems

Proven performance for demanding applications

Hydoring designs and manufactures high-quality hydraulic power units and complete systems for the needs of industry, the energy sector, and the marine sector. We offer solutions both as standard series and as fully customized systems, all carefully tested and commissioned, ready for use.

Our modern power unit design is based on decades of experience and close cooperation with leading component manufacturers. This ensures high performance, long service life, and excellent serviceability, even in continuous 24/7 operation.

Our range includes:

  • HD L100 and HD K100 – compact, cost-effective small power unit series (tank sizes 25–75 l). Particularly suitable for small industrial and automation applications.

  • HDK series – modular power unit solutions for heavier-duty applications (tank sizes 63–2000 l). The series can be equipped with customer-specific valve, control, and pump solutions

  • CPU power units – compact, servo-motor-driven power units that are an excellent solution for modern electro-hydraulic systems, where energy efficiency, precision, and space saving are key priorities

All solutions are designed according to the customer’s technical requirements, whether it is a standard solution or a fully customized system.

Hydoring’s expertise, in-house design, and modern production, combined with high-quality components, ensure that every delivery operates reliably for years to come.

HD L100 is Hydoring’s smallest power unit series, offering an excellent combination of performance, cost-efficiency, and a compact design. The series is particularly suitable for light and medium-duty industrial applications where space is limited.

Technical specifications:

  • Tank sizes: 30, 55, and 75 liters
  • Pump sizes: 4–26 cm³/min
  • Electric motors: 2.2–11 kW
  • Number of valve positions: 1–8 units

The HD K100 series is designed to meet the needs of basic hydraulic users. It offers a moderate level of configurability while remaining a cost-effective solution for small and medium-sized industrial applications.

Technical specifications:

  • Tank sizes: 30, 55, and 75 liters
  • Pump sizes: 4–26 cm³/min
  • Electric motors: 2.2–11 kW
  • Number of valve positions: 1–8 units

The HDK series is designed for demanding industrial hydraulic applications where flexibility, efficiency, and durability are required. Its modular design enables the power unit to be precisely customized to meet the customer’s technical requirements.

Technical specifications:

  • Tank volumes: 63–2000 liters
  • Modular design
  • Customizable subassemblies: valve manifolds, control systems, and pump solutions

The HDK series can be integrated with intelligent control systems and a wide range of components – all designed and tested as a fully functional solution.

CPU power units are modern and space-efficient hydraulic units designed specifically for intelligent and energy-efficient electrohydraulic solutions. Servo motor control ensures precise motion control, fast response times, and significant energy savings compared to traditional systems.

Technical specifications:

  • Compact design – saves space and integrates easily
  • Optimized tank design
  • Quieter compared to a traditional hydraulic power unit
  • Servo motor control – precise and responsive control
  • Energy-efficient operation
  • Fully customizable to suit the application
  • Extensive optional equipment options

CPU power units for demanding applications where space-saving, controllability, and energy efficiency are emphasized.

Hydraulic components

A versatile selection of leading hydraulic brands

We offer a wide range of high-quality hydraulic components to meet the needs of different systems. We work in cooperation with leading manufacturers such as Bosch Rexroth, Parker, Hydac, Vickers, Atos, and many others, ensuring component quality and availability.

Whether it’s spare parts, new installations, or system upgrades, our expert team helps you select the right components quickly and reliably.

Direct factory connections and a comprehensive inventory ensure fast deliveries, even for demanding applications.

The range includes, among others:

  • Pumps (gear, vane, and piston pumps)
  • Hydraulic filters and filter elements
  • Hydraulic valves (directional control valves, pressure valves, flow control valves)
  • Hydraulic motors
  • Hydraulic accumulator
  • Pressure and temperature gauges
  • Hoses, fittings, and piping components
  • Tank accessories
  • Sensors and electronic components for control
  • Hydraulic base plates and manifolds

Customized solutions

Increasingly, our customers require fully customized solutions. Our skilled design team delivers special cylinders, tailored power units, and complete systems according to customer requirements.

We continuously invest in the expertise of our personnel as well as in modern design and manufacturing tools. Most of our cylinders, hydraulic power units, and manifolds are 3D modeled in the SolidWorks environment, which speeds up the design process and ensures high quality.

Tools to support our customers

Hydoring’s cylinder configurator helps you quickly and easily select the right hydraulic cylinder. By entering the technical requirements of your application, you can narrow down the options and compare different cylinder types. To support your selection, you can also download 3D models and technical documentation, which speeds up the design process and simplifies integration into your own system.

Go to the configurator
